● Drive form: Central drive or distributed drive;
● Motor solution: The stator adopts distributed winding, the rotor adopts segmented skewed poles with "V"‑shaped magnet slot design, delivering low cogging torque and excellent NVH performance;

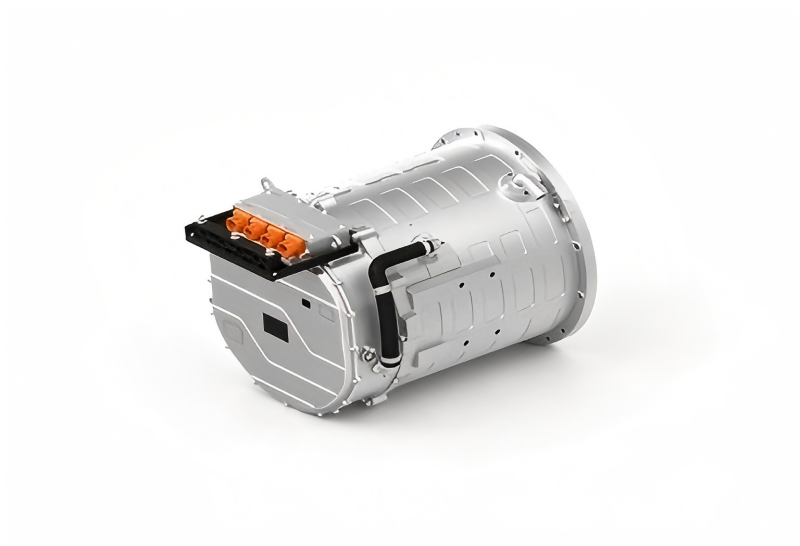

● Motor structure: The motor and electronic control unit share the same housing and water channel, featuring high integration, light weight and reliable structure;
● Widely applied in heavy‑duty trucks, mining trucks, ships and other fields:
Product Features
● Drive form: Central drive or distributed drive;
● Motor solution: The stator adopts distributed winding, the rotor adopts segmented skewed poles with "V"‑shaped magnet slot design, delivering low cogging torque and excellent NVH performance;
● Motor structure: The motor and electronic control unit share the same housing and water channel, featuring high integration, light weight and reliable structure;
● Widely applied in heavy‑duty trucks, mining trucks, ships and other fields:
Product Parameters
Model | KTZ60X330T018HNBY | KTZ60X475T018HNBY |
Project | Performance Description | Performance Description |
Rated/Peak Power | rated 330KW， peak 550KW | rated475KW，peak660KW |
Rated/Peak speed | rated 1970rpm， peak 3500rpm | rated2268rpm，peak4000rpm |
Rated/Peak Torque | rated 1600Nm， peak 2800Nm | rated2000Nm，peak3000Nm |
Maximum busbar current | ±900A | ±950A |
Bus input voltage range | 400V ～ 750V | 400V ～ 750V |
Rated voltage | 650V | 650V |
Rated/Peak Output Phase Current | 400Arms/900Arms | 500Arms /950Arms |
Low‑voltage input voltage range | 9V ～ 32V | 9V ～ 32V |
Weight | 337±1kg | 339±1kg |
Runtime ambient temperature | -40℃~+85℃ | -40℃～+85℃ |
Protection Grade | IP67 | IP67 |
