Low engine fuel consumption rate, with a minimum fuel consumption rate of <195g/kw.h;
Overlap of generator high efficiency zone with engine high efficiency zone, improving the efficiency of range extender assembly;
High NVH quality, chain-driven timing system, good sound quality and low vibration;
Lightweight design, engine high-strength aluminium alloy cylinder head, alloy cast iron cylinder block.
Product Advantages
Low engine fuel consumption rate, with a minimum fuel consumption rate of <195g/kw.h;
Overlapping of the generator high efficiency zone with the engine high efficiency zone, improving the efficiency of the range extender assembly;
High NVH quality, chain-driven timing system, good sound quality and low vibration;
Lightweight design, engine high-strength aluminium alloy cylinder head, alloy cast iron cylinder block.
Technical Applications
High thermal efficiency of the engine; overlapping design of motor and engine efficiency zones;
Lightweight engine design; NVH sound quality tuning; High reliability.

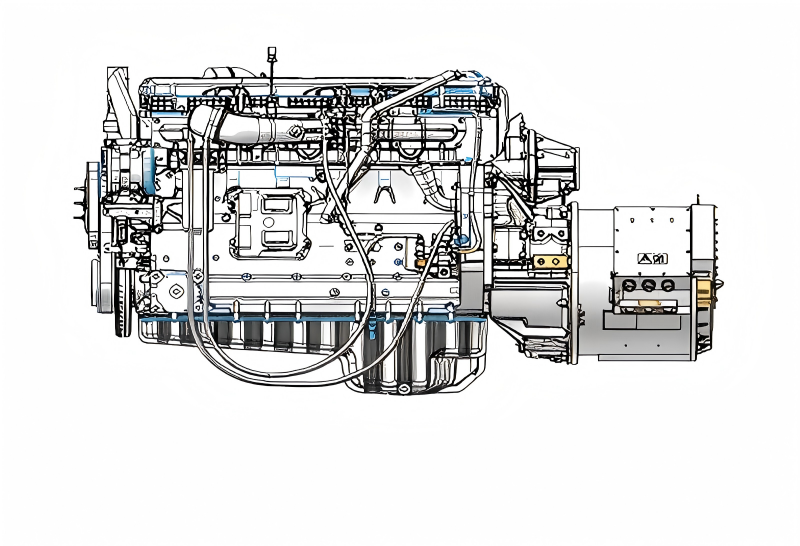

Product Model
| project | 260‑350 horsepower data | 350‑530 horsepower data |
|---|---|---|
| DEF90发动机 | DEF90 | D130TCIF发动机 |
| Model | DEF90 | D130TCIF |
| Rated Power | 221kW/1700rpm | 389kW/1800rpm |
| Maximum torque | 1500N·m | 2550N·m |
| Maximum speed | 2200rpm | 2200rpm |
| Displacement | 9.0L | 13.0L |
| Minimum fuel consumption | 195g/kW·h | 184g/kW·h |
| Emission standard | China Stage III and Stage IV for non‑road mobile machinery | China Stage III and Stage IV for non‑road mobile machinery |
| Generator |
|
|
| Motor model | TZ410XZH1H1500620-Y5L | TZ410XZH1H1500620-Y5L |
| Rated DC voltage | 620 | 620 |
| Rated / Peak Torque | 1050/1365 | 2000/2600 |
| Rated / Peak Power | 220/286 | 350/400 |
| Rated / Peak Speed | 2000/2500 | 2000/2500 |
|
KTZ65X95ST011HNBY |
|
|
| Short‑time operating current | 600 | 700 |
| Continuous operating current | 350 | 400 |
| Rated voltage | 620 | 620 |
| Maximum capacity | 436kVA | 450kVA |
| Maximum Power | 98% | 98% |
| Assembly dimensions (L×W×H mm) | 401288112 | 401288112 |
| App Market | 拖拉机等 | 大型拖拉机等 |
