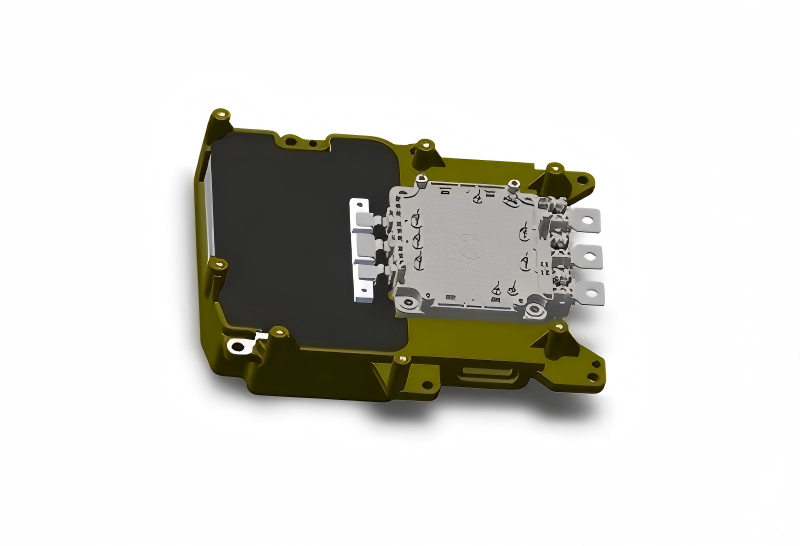

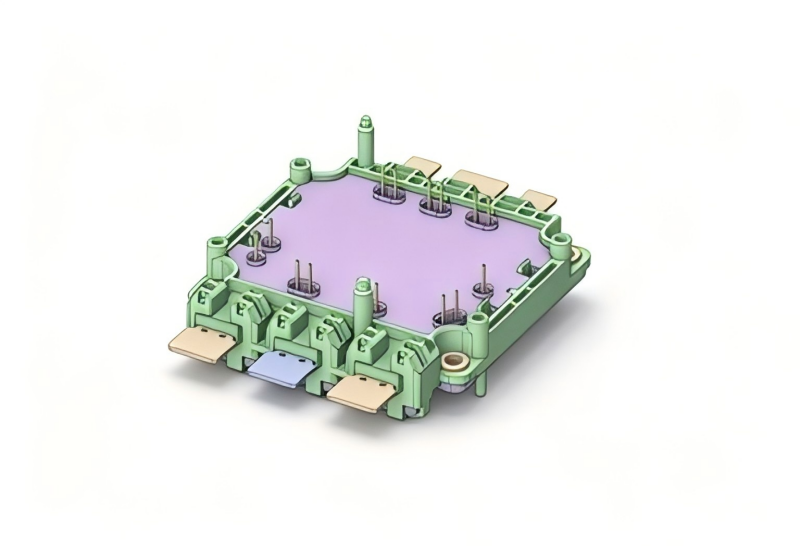

| Key Performance Parameters of Inverter Brick Module | |||||
| Inverter brick model | GTM400060 | GTM400100 | GTM800100 | GTM800150 | GTM800250 |
| voltage platform | 400V（200-500V） | 800V（400-900V） | |||
| Device Type | Si IGBT | Si IGBT | Si IGBT | SiC MOS | SiC MOS |
| Device Specifications | 750V/270A | 750V/400A | 1200V/220A | 1200V/3.1mΩ | 1200V/2.2mΩ |
| Rated Output Current | 130Arms | 170Arms | 130Arms | 150Arms | 200Arms |
| Peak Output Current | 180Arms | 300Arms | 180Arms | 300Arms | 400Arms |
| size（mm） | / | ||||
| weight（kg） | 3 | ||||
