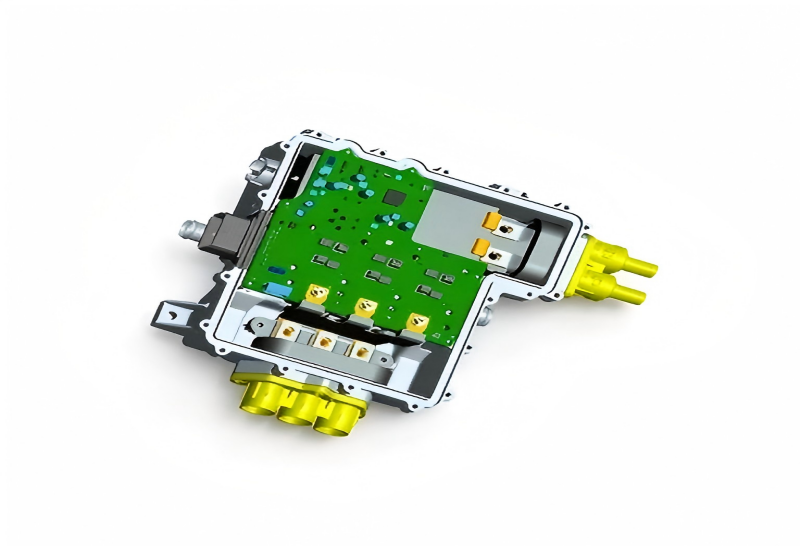

Inverter brick design: integrated power module, bus‑bar capacitor and hardware circuit; easy for integration.
Two major platforms cover power levels ranging from 60‑250 kW.
1 Power Platform

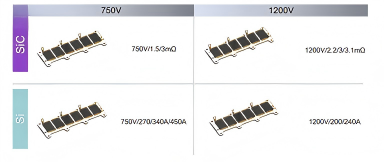

Tpak full‑bridge power module solution;
Compatible with 750V/1200V;
Compatible with Si IGBT /SiC MOS.
2 Inverter Brick Combination
400V Platform: 60‑100kW
800V Platform: 100‑250kW
Bus Capacitor: Deeply Integrated Heat Dissipation
DC Filter Assembly: Optional External Fit
3 Application Fields
Passenger Vehicles: Range‑extended, Battery‑electric
Commercial Vehicles: Light‑duty Trucks, Heavy‑duty Trucks
Off‑road Equipment: Main Drive, Superstructure
Product Parameters
| Key Performance Parameters of Inverter Brick Module | |||||
| Inverter brick model | GTM400060 | GTM400100 | GTM800100 | GTM800150 | GTM800250 |
| Voltage platform | 400V（200-500V） | 800V（400-900V） | |||
| Device Type | Si IGBT | Si IGBT | Si IGBT | SiC MOS | SiC MOS |
| Device Specifications | 750V/270A | 750V/400A | 1200V/220A | 1200V/3.1mΩ | 1200V/2.2mΩ |
| Rated Output Current | 130Arms | 170Arms | 130Arms | 170Arms | 200Arms |
| Peak Output Current | 180Arms | 300Arms | 180Arms | 300Arms | 450Arms |
| size（mm） | 203*181*65 | ||||
| weight（kg） | 3 | ||||
