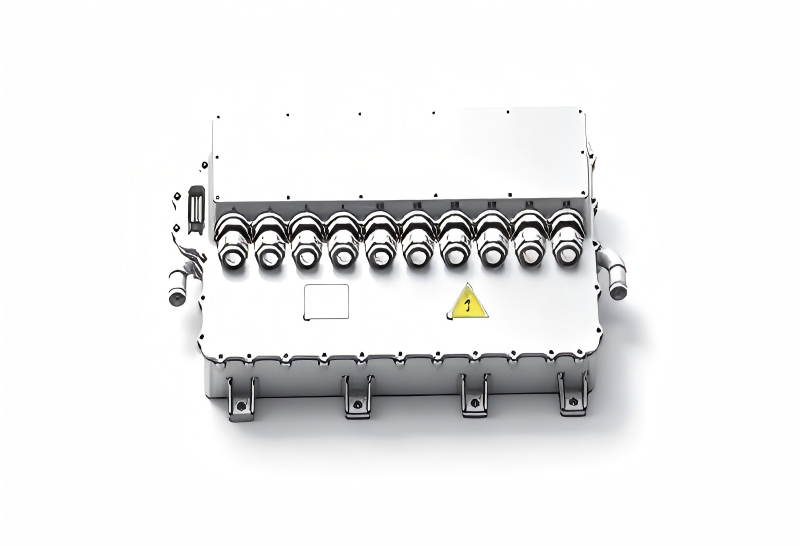

1. Dual‑motor controller applicable to heavy‑duty truck models or hybrid models;
2. Two‑in‑one drive layout with dual‑channel output, which can be used to control the drive motor and generator respectively;
3. Maximum single‑channel output up to 300 kW
4. Adoption of SiC modules to achieve higher‑efficiency and safer product performance;
5. The product platform meets the requirements of 336 V and 540 V;
1. Dual‑motor controller applicable to heavy‑duty truck models or hybrid models;
2. Two‑in‑one drive layout with dual‑channel output, which can be used to control the drive motor and generator respectively;
3. Maximum single‑channel output up to 300 kW
4. Adoption of SiC modules to achieve higher‑efficiency and safer product performance;
5. The product platform meets the requirements of 336 V and 540 V;
Product Parameters
Motor Controller Model | KTZ54X30SS005HNBY | KTZ54X34SS005HNBY | KTZ54X42SS005HNBY | KTZ54X56SS005HNBY | KTZ80X40SS005HNBY |
Rated Input Voltage | 540V | 540V | 540V | 540V | 800V |
Rated output current | 150A/150A | 200A/200A | 250A/250A | 300A/300A | 200A/200A |
Maximum output current | 300A/300A | 400A/400A | 500A/500A | 560A/560A | 400A/400A |
Rated power(kW) | 80kW/80kW | 100kW/100kW | 110kW/110kW | 150kW/150kW | 160kW/160kW |
Peak power(kW) | 160kW/160kW | 180kW/180kW | 220kW/220kW | 300kW/300kW | 320kW/320kW |
