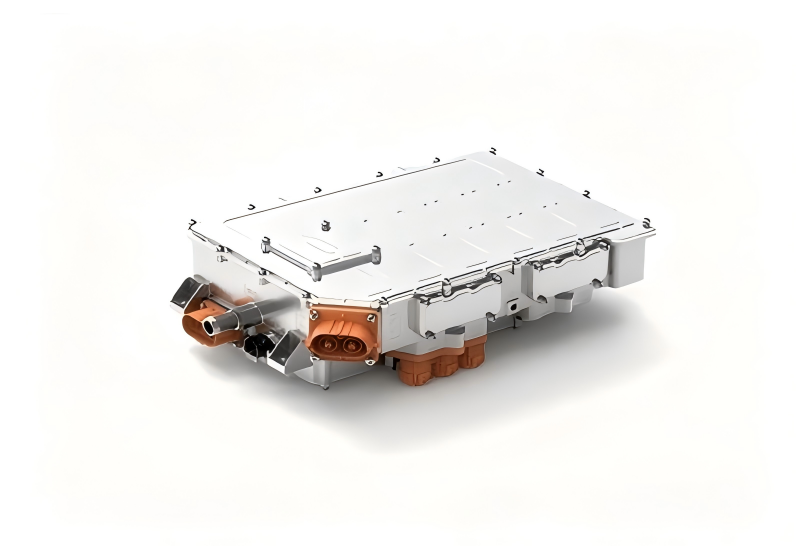

1. Dual‑motor controller applicable to light‑truck models or hybrid models;
2. Two‑in‑one drive layout with dual‑channel output, which can be used to control the drive motor and generator respectively;
3. Maximum single‑channel output of 150 kW;
4. The product platform meets the requirements of 336 V and 540 V;
1. Dual‑motor controller applicable to light‑truck models or hybrid models;
2. Two‑in‑one drive layout with dual‑channel output, which can be used to control the drive motor and generator respectively;
3. Maximum single‑channel output of 150 kW;
4. The product platform meets the requirements of 336 V and 540 V;
Product Parameters
Motor Controller Model | KTZ54X30ST016HNBY | KTZ34X40ST016HNBY |
Rated Input Voltage | 540V | 336V |
Rated Output Current | 150A/150A | 200A/200A |
Maximum output current | 300A/300A | 400A/400A |
Rated power(kW) | 80kW/80kW | 80kW/80kW |
Peak Power(kW) | 160kW/160kW | 130kW/130kW |
