1) The product output power level is further improved to fully cover the market demand of 600 kW, with a power density of 25 kW/L;
2) Adopt a dual‑chip and dual‑platform design layout of DSP+CPLD;
3) While enhancing the control accuracy of the product, its capability for handling abnormal protection is further upgraded;
4) The sophisticated structural design enables the product to meet the IP68 rating standard in terms of protection safety;
5) Product development leverages model‑based definition, model simulation and code generation technologies to achieve an optimal product safety solution;
1) The product output power level is further improved to fully cover the market demand of 600 kW, with a power density of 25 kW/L;
2) Adopt a dual‑chip and dual‑platform design layout of DSP+CPLD;
3) While enhancing the control accuracy of the product, its capability for handling abnormal protection is further upgraded;
4) The sophisticated structural design enables the product to meet the IP68 rating standard in terms of protection safety;
5) Product development leverages model‑based definition, model simulation and code generation technologies to achieve an optimal product safety solution;
Electric heavy‑duty trucks Electric mining trucks Electric vessels Construction machinery category

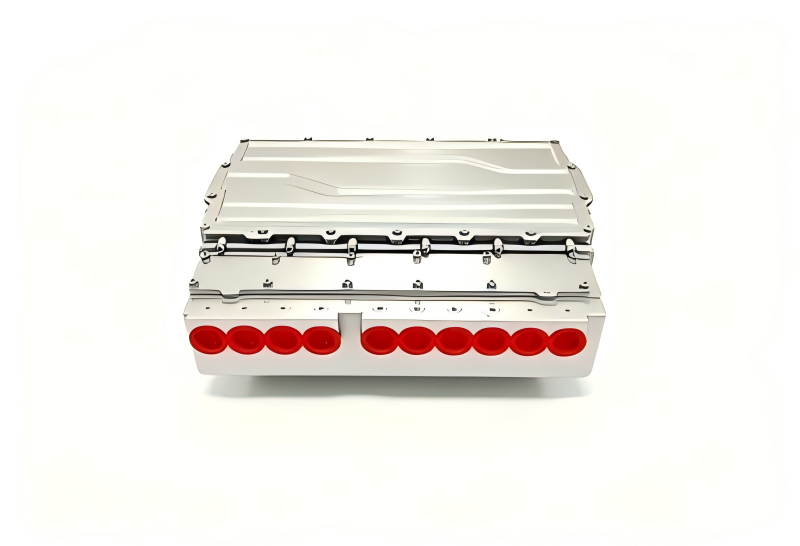

| Motor Controller Model | KTZ65X95ST011HNBY | KTZ65X70SST011HNBY | KTZ90X90SST011HNBY |
|---|---|---|---|
| Rated Input Voltage (VDC) | 650 | 650 | 900 |
| Rated Output Current (A) | 550 | 450 | 550 |
| Maximum Output Current (A) / Time | 950/1min | 700/1min | 900/1min |
| Rated Power (kW) | 350 | 300 | 495 |
| Peak Power (kW) | 610 | 455 | 810 |
| Weight (Kg) | 23 | 23 | 24 |
| Protection Grade | IP68 | IP68 | IP68 |
