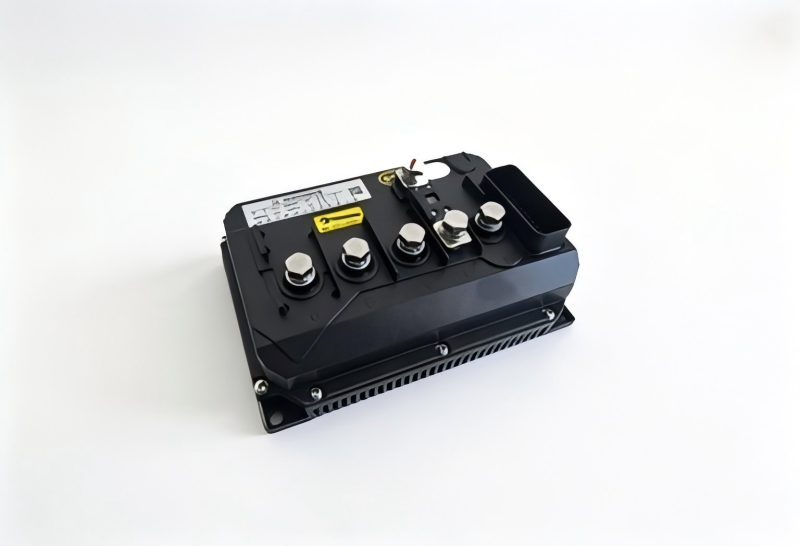

1)T003 motor controller is based on 32-bit DSP/ARM, featuring high control accuracy, fast torque response, smooth start, safe and reliable, stable and high efficiency, low noise and easy installation.
2) It supports brake cut-off, feed-back braking, E-ABS, current limiting, cruise control, wheel movement alarm, self-learning, one-line pass, one-key repair, steep hill descent, TCS, nitrogen mode, anti-skidding and other functions.
3) Complete protection functions such as overheating, overvoltage, undervoltage, overcurrent, short circuit, overspeed, communication abnormality, position signal abnormality, temperature detection signal abnormality and so on.
1)T003 motor controller is based on 32-bit DSP/ARM, featuring high control accuracy, fast torque response, smooth start, safe and reliable, stable and high efficiency, low noise and easy installation.
2) It supports brake cut-off, feed-back braking, E-ABS, current limiting, cruise control, wheel movement alarm, self-learning, one-line pass, one-key repair, steep hill descent, TCS, nitrogen mode, anti-skidding and other functions.
3) Complete protection functions such as overheating, overvoltage, undervoltage, overcurrent, short circuit, overspeed, communication abnormality, position signal abnormality, temperature detection signal abnormality and soon.
Product Parameters
| Model | Rated Operating Voltage (V) | DC Current Limit (A) | Peak phase current (A) | Protection class | Cooling Method |
| T003048350 | 48 | 200 | 350±10 | IP67 | self‑cooling |
| T003060350 | 60 | 200 | 350±10 | IP67 | self‑cooling |
| T003080350 | 80 | 200 | 350±10 | IP67 | self‑cooling |
| T003150200 | 150 | 70 | 200±10 | IP67 | self‑cooling |
| T003150350 | 150 | 125 | 350±10 | IP67 | self‑cooling |
| T003150500 | 150 | 175 | 500±10 | IP67 | self‑cooling |
